0602 Side View Pure Green Smd Power Led Light emitting Diode 1.1mm Height

Product Categories
DOUBLE LIGHT ELECTRONICS TECHNOLOGY CO.,LTD
Contact Now

0602 Side View Pure Green Smd Power Led Light emitting Diode 1.1mm Height

Brand Name : DOUBLE LIGHT

Model Number : DL-PCB0602PGC-1PG120

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 4000pcs

Price : US$ 0.001 per unit (Pieces)

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 15,000,000pcs per Day

Delivery Time : 5-7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 0602 Chip LED

Package : 0602 Size 1.1mm Height

Emitted Color : Pure Green

Peak Emission Wavelength : 510nm

Lens Type : Water Clear

Forward Voltage @20ma : 3-4v

Viewing Angle : 120 Deg

Chip Material : InGaN

Luminous Intensity : 450-700mcd

Power : 0.1W

application : Indicator and backlighting

Contact Now

0602 Side View Pure Green Smd Power Led Light emitting Diode 1.1mm Height

Part No. Chip Material Lens Color Source Color
DL-PCB0602PGC-1PG120 InGaN Water Clear Pure Green






  • Features:
  1. Package in 8mm tape on 7″ diameter reel.
  2. Side view LED.
  3. Wide viewing angle.
  4. Compatible with automatic placement equipment.
  5. Compatible with infrared and vapor phase reflow solder process.
  6. Mono-color type.
  7. The product itself will remain within RoHS compliant Version.
  • Descriptions:
  1. The PCB0602 Side view LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications, etc.
  • Applications:
  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. General use.

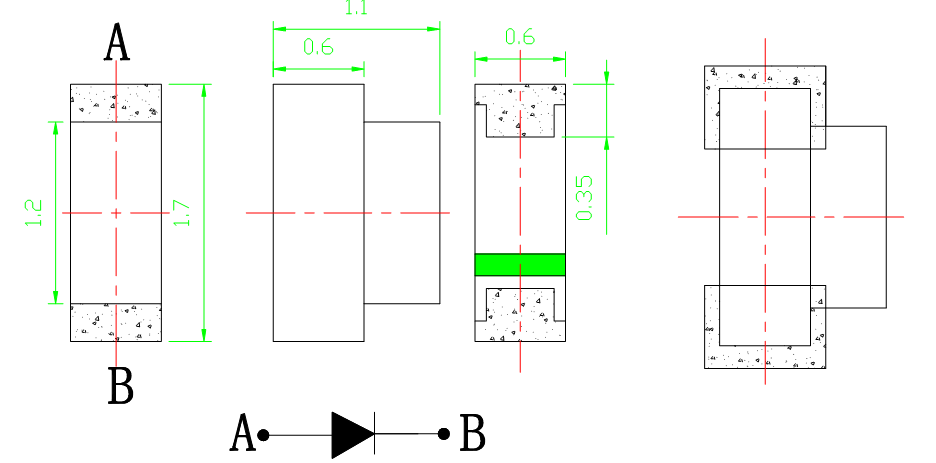

Package Dimension:
0602 Side View Pure Green Smd Power Led Light emitting Diode 1.1mm Height

  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation PD 95 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds
  • Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 450 700 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 510 --- nm IF=20mA
Dominant Wavelength λd --- 520 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
Forward Voltage VF 3.00 3.30 4.00 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V

Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



Company intorduction:
HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, 0602 SMD chip LEDs, Side view led, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.

0602 Side View Pure Green Smd Power Led Light emitting Diode 1.1mm Height

Why double light can consider high quality and low price at the same time?

  • Double light has been in LED industry for more than 15 years, has accumulated a huge number of worldwide customers.
  • Based on the huge customers base, Double light manufacturing capacity was magnified to a high lever.
  • Under this background, DOUBLE LIght can benefit its customers with low price.

0602 Side View Pure Green Smd Power Led Light emitting Diode 1.1mm Height

choose DOUBLE LIGHT, your expert LED components nearby!
