Warm White 2835 Chip LED Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight

Name: Warm White 2835 Chip LED Bright Wiring 075mm SMD Chip LED with Plastic Housing for indicator and backlight
Brand: Double LIGHT
Price: 0.025 USD

Wholesale Warm White 2835 Chip LED Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight from china suppliers

Brand Name : Double LIGHT

Model Number : DL-TOP2835W30-02W

Certification : ISO9001:2008,Rosh

Place of Origin : China

MOQ : 1000 pcs

Price : USD0.025-0.05/pcs

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 15,000,000pcs per Day

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Delivery Time : 7-10 working days after payment received

Product Name : 2835 Warm White SMD Chip LED

Power Dissipation : 210mW

Forward Current : 60mA

Peak Emission Wavelength : 3000K

Viewing Angle : 120 Deg

Luminous Flux : 22-30lm

Forward Voltage : 3.0-3.8v

Color Rendering Index : 70-75

Peak Forward Current : 100mA

Reverse Voltage : 5V

Contact Now

DL-TOP2835W30-02W.pdf
Warm White 2835 Chip LED Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight

Features:

P-LCC-2 package.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Wide viewing angle.
Suitable for automatic placement equipment.
Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
Available on tape and reel (8mm Tape).
The product itself will remain within RoHS compliant Version.

Descriptions:

The TOP2835 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

Automotive: Backlighting in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General

Package Dimension:

Warm White 2835 Chip LED Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight

Part No.	Chip Material	Lens Color	Source Color
DL-TOP2835W30-02W	InGaN	Yellow Diffused	Warm White

Notes:

All dimensions are in millimeters.
Tolerance is ± 0.10 mm (.004″) unless otherwise specified.
Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	210	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Continuous Forward Current	IF	60	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	2000	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Flux *	Фv	22		30	lm	IF=60mA (Note 1)
Viewing Angle *	2θ1/2	---	120	---	Deg	IF=60mA (Note 2)
Chromaticity Coordinates	x	---	0.45	---		IF=60mA (Note 3)
Chromaticity Coordinates	y	---	0.43	---		IF=60mA (Note 3)
Color Rendering Index	RA	70	75	----		IF=60mA
Forward Voltage	VF	3.00	3.30	3.80	V	IF=60mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

Luminous Intensity Measurement allowance is ± 10%.
θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

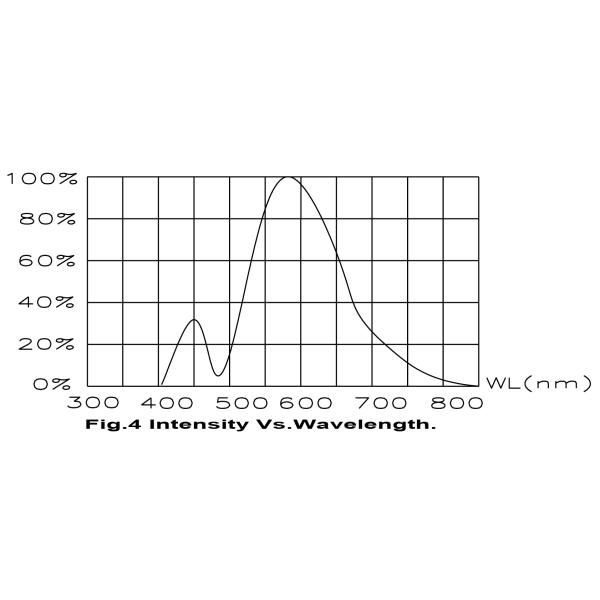

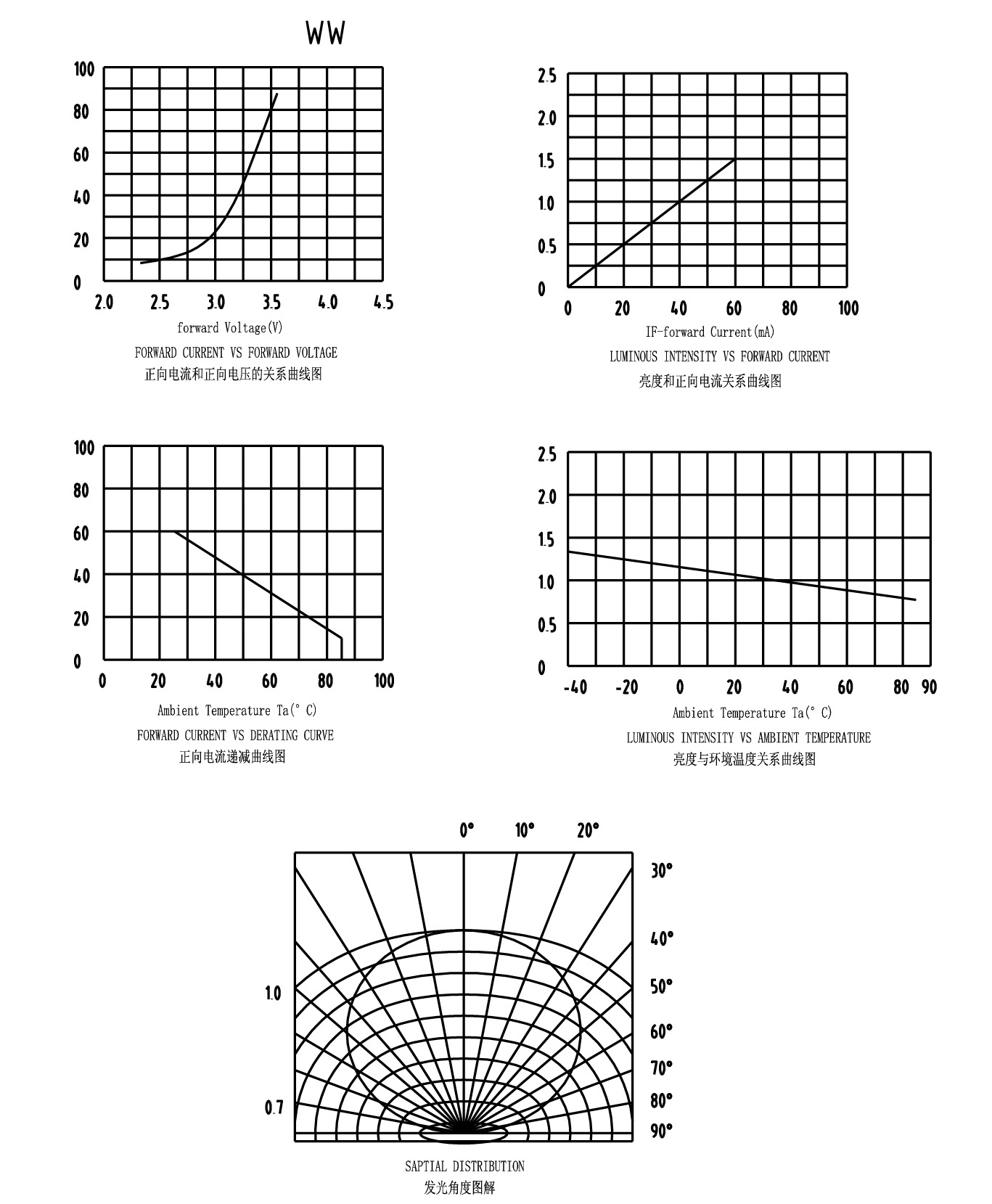

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)
Warm White 2835 Chip LED Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight

CIE Chromaticity Diagram:
