Automotive Backlighting SMD Led 1206 Blue 1.10mm Height 350Mcd Luminous Flux

Datasheet:DL-PCB1206BC-1B120.pdf LIGHT SOURCE: Blue

Features:

1. Package in 8mm tape on 7″ diameter reel.
2. Compatible with automatic placement equipment.
3. Compatible with infrared and vapor phase reflow solder process.
4. Mono-color type.
5. The product itself will remain within RoHS compliant version.

Descriptions:

1. The 1206 SMD LED is much smaller than lead frame type Components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
2. Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

1. Automotive: Backlighting in dashboard and switch.
2. Telecommunication: Indicator and backlighting in telephone and fax.
3. Flat backlight for LCD, switch and symbol.
4. General use.

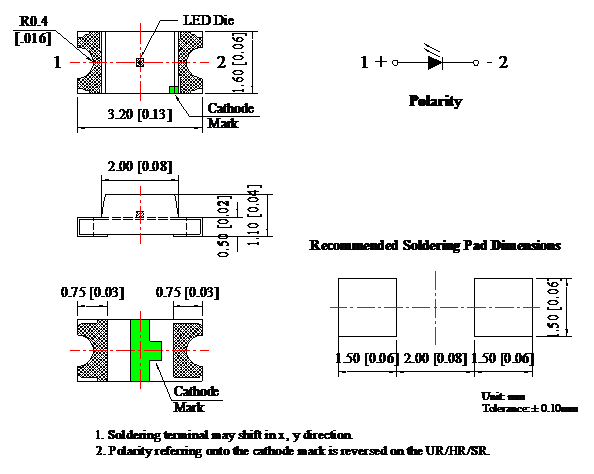

Package Dimension:

• Package Dimension:
• Absolute Maximum Ratings at Ta=25℃

• Parameters	Symbol	Max.	Unit
  Power Dissipation	PD	95	mW
  Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
  Continuous Forward Current	IF	25	mA
  Reverse Voltage	VR	5	V
  Electrostatic Discharge	ESD	1000	V
  Operating Temperature Range	Topr	-40℃ to +80℃
  Storage Temperature Range	Tstg	-40℃ to +85℃
  Soldering Temperature	Tsld	260℃ for 5 Seconds

  Electrical Optical Characteristics at Ta=25℃

  Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
  Luminous Intensity *	IV	20	40	---	mcd	IF=5mA (Note 1)
  		60	100	---		IF=20mA (Note 1)
  Viewing Angle *	2θ1/2	---	120	---	Deg	IF=20mA (Note 2)
  Peak Emission Wavelength	λp	---	468	---	nm	IF=20mA
  Dominant Wavelength	λd	---	470	---	nm	IF=20mA (Note 3)
  Spectral Line Half-Width	△λ	---	25	---	nm	IF=20mA
  Forward Voltage	VF	2.80	3.30	3.80	V	IF=20mA
  Reverse Current	IR	---	---	10	µA	VR=5V

  Notes:

• Luminous Intensity Measurement allowance is ± 10%.
• θ_1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
• The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

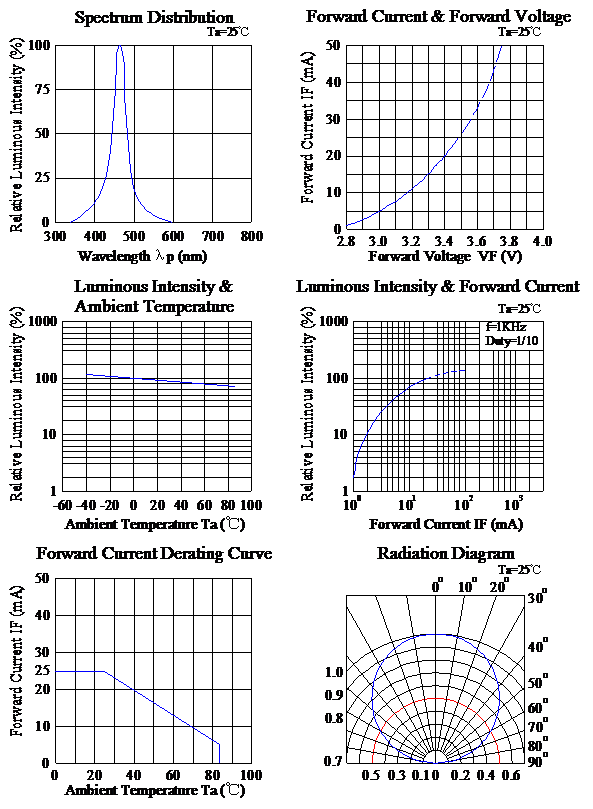

• Typical Electrical / Optical Characteristics Curves

• (25℃ Ambient Temperature Unless Otherwise Noted)

• Reliability Test Items And Conditions:

• The reliability of products shall be satisfied with items listed below:

  Confidence level: 90%.

  LTPD: 10%.

  1) Test Items and Results:

  No.	Test Item	Test Hours/Cycles	Test Conditions	Sample Size	Ac/Re
  1	Resistance to Soldering Heat	6 Min	Tsld=260±5℃, Min. 5sec	25pcs	0/1
  2	Thermal Shock	300 Cycles	H: +100℃ 5min ∫ 10 sec L: -10℃ 5min	25pcs	0/1
  3	Temperature Cycle	300 Cycles	H: +100℃ 15min ∫ 5min L: -40℃ 15min	25pcs	0/1
  4	High Temperature Storage	1000Hrs.	Temp: 100℃	25pcs	0/1
  5	DC Operating Life	1000Hrs.	IF=20mA	25pcs	0/1
  6	Low Temperature Storage	1000Hrs.	Temp: -40℃	25pcs	0/1
  7	High Temperature/ High Humidity	1000Hrs.	85℃/85%RH	25pcs	0/1

  2) Criteria for Judging the Damage:

  Item	Symbol	Test Conditions	Criteria for Judgment
  			Min	Max
  Forward Voltage	VF	IF=20mA	---	F.V.*)×1.1
  Reverse Current	IR	VR=5V	---	F.V.*)×2.0
  Luminous Intensity	IV	IF=20mA	F.V.*)×0.7	---

•

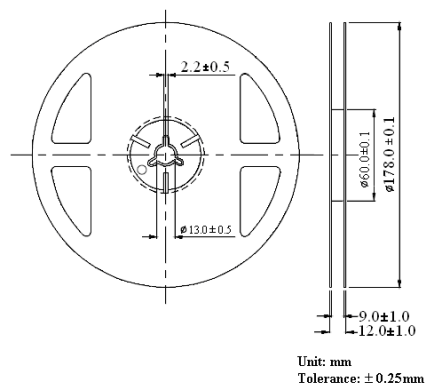

  Reel Dimensions:

Carrier Tape Dimensions:

Loaded quantity 3000 PCS Per reel.

1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
2. θ_1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.
