Red Chip LED , Yellow Chip LED, Yellow Green Chip LED, 1206 Package SMD LED with 1.6mm lens

Brand Name : DOUBLE LIGHT

Model Number : DL-PCB1206SRC-R18

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 2,000pcs

Price : US$ 0.024-0.03 per unit (Pieces) depend on the quantity

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 2,000,000pcs per Day

Delivery Time : 7-10 working days after payment received

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 1206 Package Red Chip LED

Emitted Color : Red

Peak Emission Wavelength : 624-632nm

Lens Type : Water Clear

Forward Voltage @20ma : 1.8-3.0v

Luminous Intensity : 600-1000mcd

Size : 3.2mmX1.6mmX1.85mm

Datasheet : Update

Contact Now

Datasheet:DL-PCB1206SRC-R18.pdf Light source: Red

DL-PCB1206UYC-R18.pdf Light source: Yellow

DL-PCB1206YGC-R18.pdf Light source: Yellow Green

1.85mm Height 1206 Package Round Subminiature Hyper Red Chip LED

This is 1.85mm height 1206 package Red chip LED, its lens color is water clear and the emitting color of this size can be customed.

Part No. Chip Material Lens Color Source Color
DL-PCB1206SRC-R18 AlGaInP Water Clear Hyper Red

Features:

  1. Package in 8mm tape on 7" diameter reel.
  2. 3.2mmX1.6mm SMT LED,1.85 mm THICKNESS.
  3. Compatible with automatic placement equipment.
  4. Compatible with infrared and vapor phase reflow solder process.
  5. Mono-color type.
  6. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The PCB1206 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone, sound and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. General use.

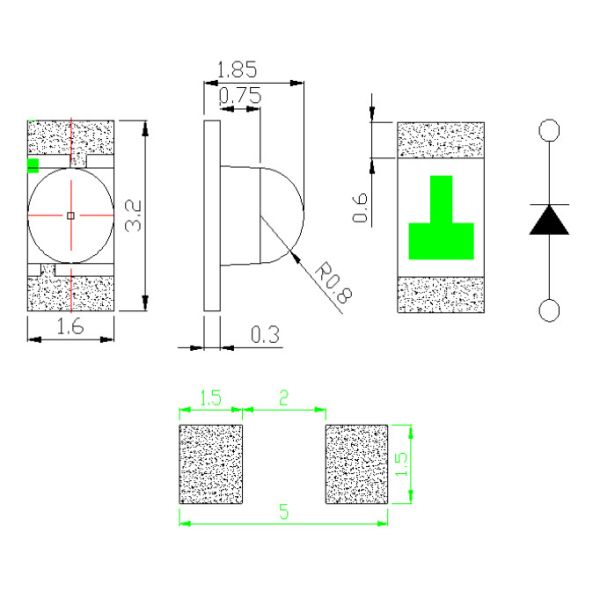

  1. Package Dimension:

Red Chip LED , Yellow Chip LED, Yellow Green Chip LED, 1206 Package SMD LED with 1.6mm lens

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 75 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Continuous Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 2000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 600 850 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 35 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 632 --- nm IF=20mA
Dominant Wavelength λd --- 624 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF 1.80 2.00 --- V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V

Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.
