0.4mm Hyper Red Chip LED PCB 0603 led diode chip as high brightness smd led for TV Backlight

Product Categories
DOUBLE LIGHT ELECTRONICS TECHNOLOGY CO.,LTD
Contact Now

0.4mm Hyper Red Chip LED PCB 0603 led diode chip as high brightness smd led for TV Backlight

Brand Name : DOUBLE LIGHT

Model Number : DL-PCB0603SRC-1SR120

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 4000pcs

Price : US$ 0.01 per unit (Pieces)

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 15,000,000pcs per Day

Delivery Time : 5-7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 0603 Chip LED

Package : 1.Package in 8mm tape on 7" diameter reel

Emitted Color : Hyper Red

Peak Emission Wavelength : 632nm

Lens Type : Water Clear

Forward Voltage @20ma : 2.0-2.8v

Viewing Angle : 120 Deg

Chip Material : AlGaInP

Luminous Intensity : 50-100mcd

Power Dissipation : 60mW

Contact Now

DL-PCB0603SRC-1SR120.pdf

0.4mm Hyper Red Chip LED PCB 0603 led diode chip as high brightness smd led for TV Backlight

Features:

  1. Package in 8mm tape on 7" diameter reel.
  2. Compatible with automatic placement equipment.
  3. Compatible with infrared and vapor phase reflow solder process.
  4. Mono-color type.
  5. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The PCB0603 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone, sound and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. General use.

Package Dimension:

0.4mm Hyper Red Chip LED PCB 0603 led diode chip as high brightness smd led for TV Backlight

Part No. Chip Material Lens Color Source Color
DL-PCB0603SRC-1SR120 AlGaInP Water Clear Hyper Red

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 60 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Continuous Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 50 100 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 632 --- nm IF=20mA
Dominant Wavelength λd --- 624 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF 2.00 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V

Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

0.4mm Hyper Red Chip LED PCB 0603 led diode chip as high brightness smd led for TV Backlight

Reel Dimensions:

0.4mm Hyper Red Chip LED PCB 0603 led diode chip as high brightness smd led for TV Backlight

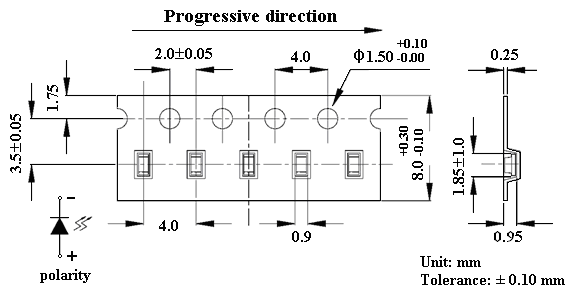

Carrier Tape Dimensions:

Loaded quantity 4000PCS Per reel.

0.4mm Hyper Red Chip LED PCB 0603 led diode chip as high brightness smd led for TV Backlight

Why choose DOUBLE LIGHT?
1. Well-known chip material
2. 99.99% gold wire bonding
3. 3 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

0.4mm Hyper Red Chip LED PCB 0603 led diode chip as high brightness smd led for TV Backlight
