1W 3W High Power 3535 White LED 6500K led emitting diode 100-240lm led diode chip with Constant Current

Product Categories
DOUBLE LIGHT ELECTRONICS TECHNOLOGY CO.,LTD
Contact Now

1W 3W High Power 3535 White LED 6500K led emitting diode 100-240lm led diode chip with Constant Current

Brand Name : Double Light

Model Number : DL-PCB3535W

Certification : ISO9001:2008,Rosh

Place of Origin : China

MOQ : 1000 PCS

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 15,000,000pcs per Day

Delivery Time : 5-7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Type : 3535 High-Powe LED Emitting Diodes

Max. Reverse Voltage : 5V

Light color : White

Color Temperature : 5500-6500K

Led Chips : Epistar led diodes

Forward Voltage : 2.8-3.8V

Luminous Flux : 100-240lm

Forward Current : 350/700mA

Power Dissipation : 3000mW

Viewing Angle : 90Deg

Contact Now

1W 3W High Power 3535 White LED 6500K led emitting diode 100-240lm led diode chip with Constant Current

DL-PCB3535W.pdf

Features:

  1. Small package with high efficiency
  2. Long operating life.
  3. Available in white, green, blue, red, yellow, Amber
  4. Typical color temperature: 5500-6500 K.
  5. View angle: 120°.
  6. Low voltage DC operated.
  7. The product itself will remain within RoHS compliant Version.
  8. ESD protection.

Applications:

  1. Reading lights (car, bus, aircraft).
  2. Portable (flashlight, bicycle).
  3. Mini accent/Uplighters/Downlighters/Orientation.
  4. Bollards/Security/Garden.
  5. Cove/Undershelf/Task.
  6. Automotive rear combination lamps.
  7. Traffic signaling/Beacons/ Rail crossing and Wayside.
  8. Indoor/Outdoor Commercial and Residential Architectural.
  9. Edge lit signs (Exit, point of sale).
  10. LCD Backlights/Light Guides.

Recommended Solder Pad Design

1W 3W High Power 3535 White LED 6500K led emitting diode 100-240lm led diode chip with Constant Current

Part No. Chip Material Lens Color Source Color
DL-PCB3535W InGaN Yellow Diffused

White

Notes:

  1. All dimensions are in millimeters.
  2. Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
  3. Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 3000 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 1000 mA
Forward Current IF 350/700 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -10℃ to +70℃
Storage Temperature Range Tstg -20℃ to +80℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Flux Φ 100 120 130 lm If=350mA (Note 1)
200 220 240 lm If=700mA (Note 1)
Viewing Angle 2θ(1/2) --- 90 --- Deg (Note 2)
Color Temperature TC 5500 --- 6500 K If=350/700mA
Forward Voltage VF 2.80 3.40 3.80 V If=350/700mA
Reverse Current IR --- --- 10 µA VR=5V

Notes:

1. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

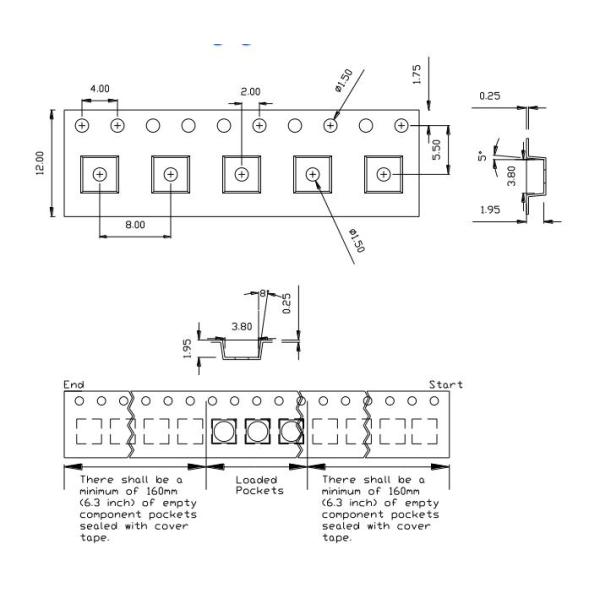

Reel Dimensions:

1W 3W High Power 3535 White LED 6500K led emitting diode 100-240lm led diode chip with Constant Current

Loaded quantity 1000 per reel.

1W 3W High Power 3535 White LED 6500K led emitting diode 100-240lm led diode chip with Constant Current
