45° Viewing Angle IR Led Emitting Diode 3mm Dip Round Cylindrical With Inner Type 850nm

Brand Name : Double Light

Model Number : DL-304SIRCA-2SIR45

Certification : ISO9001:2008,ROHS

Place of Origin : China (mainland)

MOQ : 10,000pcs

Payment Terms : Western Union, L/C, T/T,paypal

Supply Ability : 15,000,000pcs per Day

Delivery Time : 5-7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : Infrared LEDs

Diameter : Dip 3mm

Emitted Color : Infrared LED

Peak Emission Wavelength : 850nm

Chip Material : GaAlAs

Lens Type : Water Clear

Forward Voltage @20ma : 1.0-1.65V

Viewing Angle : 45Deg

Contact Now

3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED​

Know more details,please downlaod specifications:DL-304SIRCA-2SIR45.pdf

Part No. Chip Material Lens Color Source Color
DL-304SIRCA-2SIR45 GaAlAs Water Clear Infrared

  • Features:
  1. Standard T-1 diameter package.
  2. Low forward voltage.
  3. Viewing angle=45°.
  4. Reliable and rugged.
  5. The product itself will remain within RoHS complaint Version.
  • Descriptions:
  1. The device is spectrally matched with silicon photodiode and phototransistor.
  • Applications:
  1. Optoelectronic switch.
  2. Camera.
  3. Free air transmission system.
  4. Video.


Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 150 mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 1.00 A
Forward Current IF 100 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +105℃
Soldering Temperature Tsld 260℃ for 5 Seconds
  • Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Min. Typ. Max. Unit Test Condition
Radiant Intensity (Note 1) * Ee 5.0 10.0 --- mW/sr IF=20mA
--- 25.0 --- IF=100mA, tp=100µs, tp/T=0.01
Viewing Angle (Note 2) * 2θ1/2 --- 45 --- Deg IF=20mA
Peak Emission Wavelength λp --- 850 --- nm IF=20mA (Note 3)
Spectral Bandwidth △λ --- 45 --- nm IF=20mA
Forward Voltage VF 1.0 1.45 1.65 V IF=20mA
--- 1.60 1.85 IF=100mA, tp=100µs, tp/T=0.01
Reverse Current IR --- --- 10 µA VR=5V

Notes:

  • Luminous (Radiant) Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
Package Dimension:
45° Viewing Angle IR Led Emitting Diode 3mm Dip Round Cylindrical With Inner Type 850nm

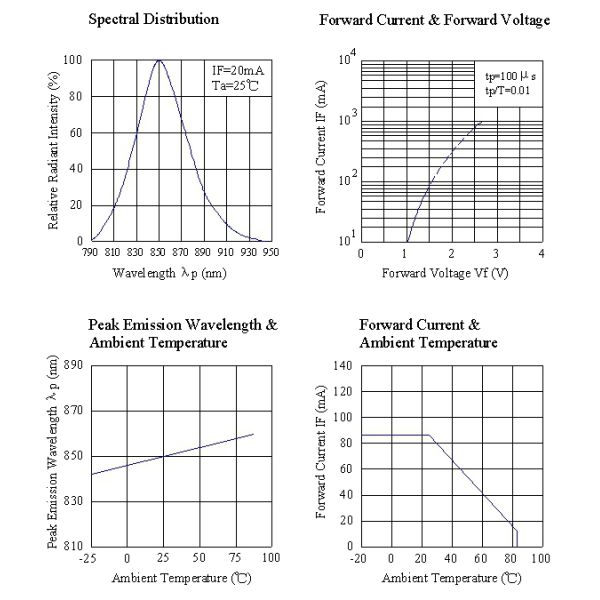

  • Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)
45° Viewing Angle IR Led Emitting Diode 3mm Dip Round Cylindrical With Inner Type 850nm
45° Viewing Angle IR Led Emitting Diode 3mm Dip Round Cylindrical With Inner Type 850nm
